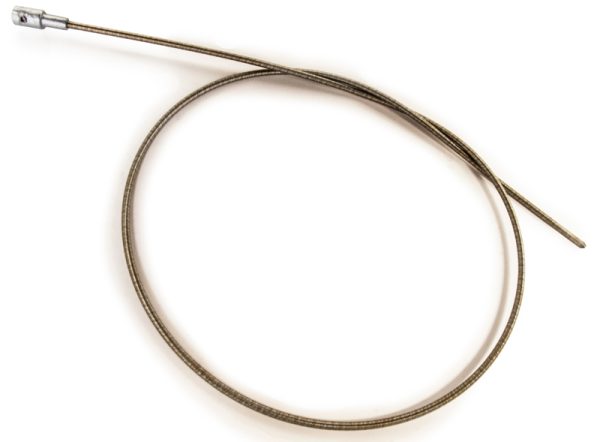

S-10805 Square Drive Shaft for SRH, TXH and H motors

$22.83

Square Drive inner shaft with square tip and coupling ends came on some discontinued Series H motors. This shorter shaft can also be used on SRH, TXH and LXH motors. Click ‘More Info’ for Details.

Description

There are two different kinds of replacement inner shafts for discontinued Series H Motors. Be careful when ordering. Be sure to expose the entire inner shaft to determine which style you need:

1. The 45-3/4″ square drive shaft featured here has a square drive tip on the handpiece end and a coupling on the other end for attaching to
the motor. When used as replacement on a discontinued Series H motor (that uses this style shaft), it should be partnered with the S-10802A heavy duty sheath (which includes the SS10822 silencer spring). Depending on your needs, you may want to consider purchasing the S-10804B, which is a complete shaft/sheath/silencer assembly.

2. The S-10805/45 is the other style inner shaft for discontinued Series H motors. It has square drive tips on BOTH ENDS and no coupling. It requires the S-10802A heavy duty outer sheath.

Optional Shorter Length for Series SRH, TXH and LXH Motors:

This square drive shaft, when used for replacement on a Series SRH, TXH or LXH motor, should be matched with the S-10802TX heavy duty sheath. It includes the SS10822 silencer spring and is available separately. Depending on your needs, you may want to consider purchasing the S-10804TX, which is a complete shaft/sheath/silencer assembly.

Square drive shafts can only be used with Foredom’s square drive handpieces. See related products below.




IMPORTANT NOTE:
S-10805 Shaft MUST ship via UPS in larger carton to avoid damage (bending) that could occur if shipped in smaller, USPS carton.







Additional information

Weight 1.15 lbs
Dimensions 15.5 × 11 × 1.5 in
