Tapered Mandrels choice of sizes:

Tapered Mandrels choice of sizes:

SKU: A-M12 – A-M3 – A-M9 – A-M7 – A-M78 – A-M16 – A-M89.

$1.98$11.44

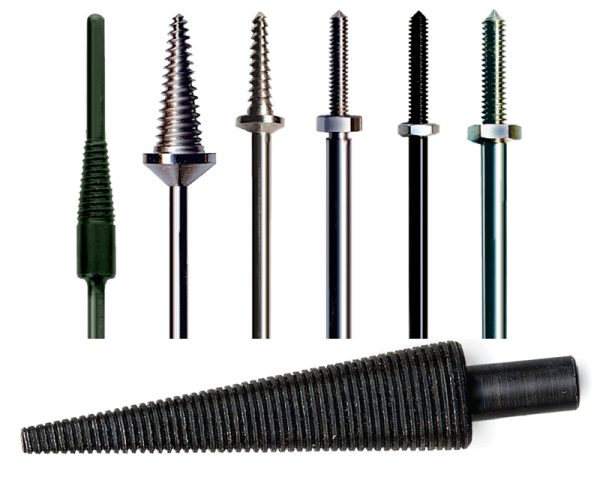

Tapered or spiral mandrels allow you to screw the accessory down onto the threads of the mandrel and, once rotation begins, it will automatically tighten onto the widening taper. This open thread design provides good stability throughout the length of the accessory. Tapered mandrels come in different shank and taper dimensions. Be sure to select the right one for the accessory and collet (or chuck) you intend to use. Made in USA. Select option below:

Clear
Category: .

For mounting polishing accessories with vertical shapes:

A-M12 – 1/8″ shank – 1/8″ Arbor Hole Capacity – 1-3/4 – 40,000 RPM Max Speed

A-M3 – 3/32″ shank – 3/32″ Arbor Hole Capacity – 1-3/4 – 40,000 RPM Max Speed

A-M9 – 1/8″ shank – 3/32″ Arbor Hole Capacity – 1-3/4 – 40,000 RPM Max Speed

A-M7 – 1/8″ shank – 1/8″ Arbor Hole Capacity – 1-3/4 – 40,000 RPM Max Speed

A-M78 – 1/8″ shank – 3/16″ Arbor Hole Capacity – 2-3/8 – 20,000 RPM Max Speed

For mounting cartridge rolls and other polishing accessories with vertical shapes:

A-M16 – 1/8″ shank – 1/8″ Arbor Hole Capacity – 2-3/4 – 18,000 RPM Max Speed

For use with 1″, 2″ and 3″ buffs:

A-M89 – 1/4″ shank – 3/8″ Arbor Hole Capacity – 2-1/2 – 18,000 RPM Max Speed



Made in USA.

Tapered or spiral mandrels allow the user to simply screw the accessory down onto the threads of the mandrel and, once rotation begins, it will automatically tighten onto the widening taper. This open thread design provides good stability throughout the length of the accessory. Tapered mandrels come in different shank and taper dimensions. Be sure to select the right one for the accessory and collet (or chuck) you intend to use.

Weight 0.1 lbs
Dimensions 7 × 5 × 1 in
SKU - Shank - Hole Capacity

A-M12 – 1/8" – 1/8", A-M16 – 1/8″ – 1/8″, A-M3 – 3/32" – 3/32", A-M7 – 1/8″ – 1/8″, A-M78 – 1/8″ – 3/16″, A-M89 – 1/4″ – 3/8″, A-M9 – 1/8″ – 3/32″
