32-Pc Tune-Up Kit for Foredom Flex Shaft Motors

32-Pc Tune-Up Kit for Foredom Flex Shaft Motors

SKU: MSP10 - MSP12 - MSP14 - MSP16.

$70.72

Kit with replacement parts and maintenance supplies for Foredom motors, and H.30 & H.44T Handpieces, 32-Pc. Choose from menu:

MSP12 is the Kit for Series SR motors built since 2005.

MSP10 is the Kit for Series TX & LX motors.

MSP16 is the Kit for old, discontinued 1/8HP Series S & SR motors (made prior to 2005).

MSP14 is the Kit for old and discontinued Series CC motors.

Complete descriptions below.

Clear

32-Pc Tune-Up Kits include essential maintenance items that keep motors and handpieces running at peak performance. They can even transform heavily used, older, even discontinued or worn machines into ones that run like new. Four dedicated kits are configured to accommodate Foredom’s line. All Tune-Up Kits have a  retail value over $86.

The key to a Foredom’s longevity is maintenance. Over the life of a machine, users can expect to clean, lubricate and, ultimately replace shafts, sheaths, and motor brushes. Motor and handpiece bearings may also wear over time, and, depending on the level of use, these components may require replacement. The fact that users can install new parts and perform routine maintenance without having to send the tool back to the factory, let alone replace it altogether, offers obvious advantages. The financial burden is minimized, as is the potential for lost production time. See parts diagrams, instruction manuals, how-to videos, and other reference materials below.

  • MSP12 is the Kit for Series SR motors built since 2005.
  • MSP10 is the Kit for Series TX & LX motors.
  • MSP16 is the Kit for old, discontinued 1/8HP Series S & SR motors (made prior to 2005).
  • MSP14 is the Kit for old and discontinued Series CC motors.

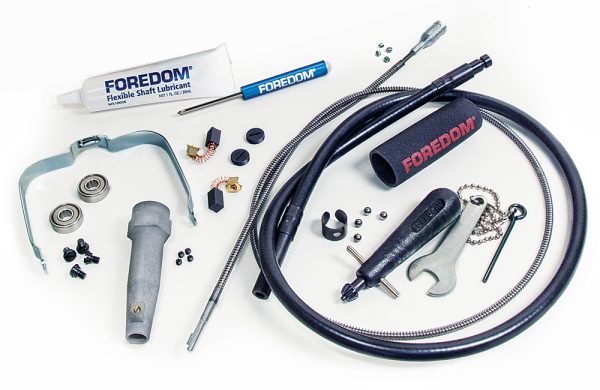

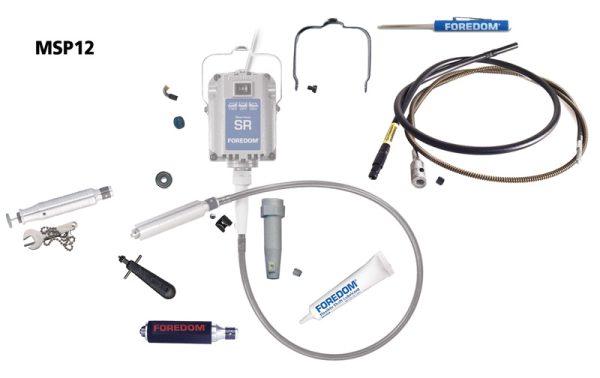

MSP12 for Series SR motors built since 2005 contains:
1. S-93 Key Tip Shaft
2. S-77 Sheath
3. MS10006 Tube of Foredom Grease
4. UA111P Motor Connector
5. UA113-4 Set Screws for Motor Connector, 4-pk
6. HP43 Spring Clip for all Handpieces
7. HP48-4 Catch Ball for all Handpieces, 4-pk
8. HPCK-0 Chuck Key for H.30® Handpieces
9. HP103117 Pin & Wrench Assembly for H.44T Handpieces
10. A-PS83 Screwdriver
11. UA112-4 Set Screws for Key Tip Shafts
12. HP61 Ball Bearings for Motor & Handpiece, 2-pk
13. HPG-30 Handpiece Grip for H.30® Handpieces
14. UA1059 Hanging Bale for SR Motors
15. UA106-4 Shoulder Screws for SR Motor Bales
16. MP132P Motor Brush Pair for SR Motors
17. MP133 Motor Brush Caps for SR Motors, 2-pk

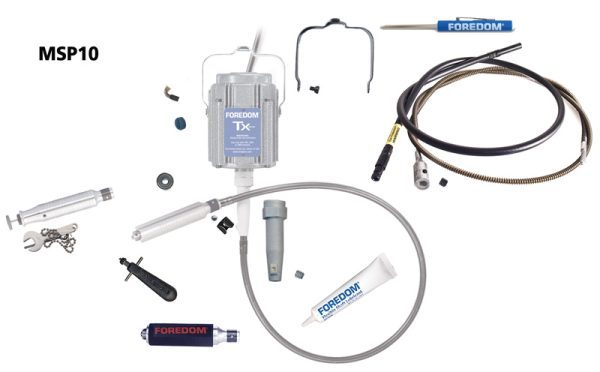

MSP10 for Series TX & LX motors contains:
1. S-93 Key Tip Shaft
2. S-77 Sheath
3. MS10006 Tube of Foredom Grease
4. UA111P Motor Connector
5. UA113-4 Set Screws for Motor Connector, 4-pk
6. HP43 Spring Clip for all Handpieces
7. HP48-4 Catch Ball for all Handpieces, 4-pk
8. HPCK-0 Chuck Key for H.30® Handpieces
9. HP103117 Pin & Wrench Assembly for H.44T Handpieces
10. A-PS83 Screwdriver
11. UA112-4 Set Screws for Key Tip Shafts
12. HP61 Ball Bearings for Motor & Handpiece, 2-pk
13. HPG-30 Handpiece Grip for H.30® Handpieces
14. UA1059 Hanging Bale for TX & LX Motors
15. UA106-4 Shoulder Screws for TX & LX Motor Bales
16. MP319P Motor Brush Pair for TX & LX Motors
17. MP133 Motor Brush Caps for TX & LX Motors, 2-pk

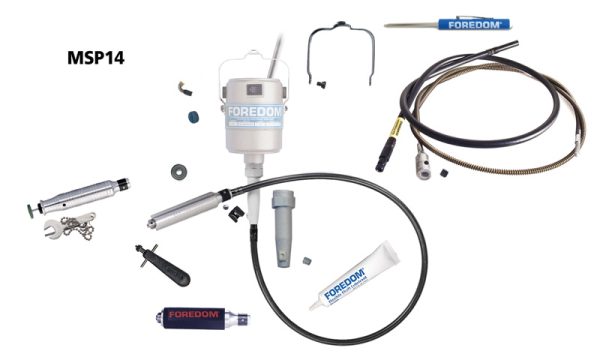

MSP14 for old and discontinued Series CC motors contains:
1. S-93 Key Tip Shaft
2. S-77 Sheath
3. MS10006 Tube of Foredom Grease
4. UA111P Motor Connector
5. UA113-4 Set Screws for Motor Connector, 4-pk
6. HP43 Spring Clip for all Handpieces
7. HP48-4 Catch Ball for all Handpieces, 4-pk
8. HPCK-0 Chuck Key for H.30® Handpieces
9. HP103117 Pin & Wrench Assembly for H.44T Handpieces
10. A-PS83 Screwdriver
11. UA112-4 Set Screws for Key Tip Shafts
12. HP61 Ball Bearings for Motor & Handpiece, 2-pk
13. HPG-30 Handpiece Grip for H.30® Handpieces
14. UA105 Hanging Bale for CC Motors
15. UA106S-4 Shoulder Screws for CC Motor Bales
16. MP119P Motor Brush Pair for CC Motors
17. MP120 Motor Brush Caps for CC Motors, 2-pk

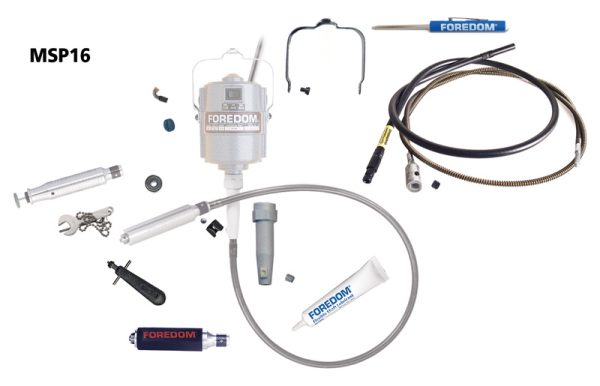

MSP16 for old, discontinued 1/8HP Series S & SR motors (made prior to 2005) contains:
1. S-93 Key Tip Shaft
2. S-77 Sheath
3. MS10006 Tube of Foredom Grease
4. UA111P Motor Connector
5. UA113-4 Set Screws for Motor Connector, 4-pk
6. HP43 Spring Clip for all Handpieces
7. HP48-4 Catch Ball for all Handpieces, 4-pk
8. HPCK-0 Chuck Key for H.30® Handpieces
9. HP103117 Pin & Wrench Assembly for H.44T Handpieces
10. A-PS83 Screwdriver
11. UA112-4 Set Screws for Key Tip Shafts
12. HP61 Ball Bearings for Motor & Handpiece, 2-pk
13. HPG-30 Handpiece Grip for H.30® Handpieces
14. UA105 Hanging Bale for 1/8HP S & SR Motors
15. UA106S-4 Shoulder Screws for 1/8HP S & SR Motor Bales
16. MP2019P Motor Brush Pair for 1/8HP S & SR Motors
17. MP120 Motor Brush Caps for 1/8HP S & SR Motors, 2-pk















Weight N/A
Dimensions N/A
SKU - Motor

MSP10 – M.TX or M.LX, MSP12 – M.SR since 2005, MSP14 – old CC motors, MSP16 – S and 1/8 hp SR prior to 2005
