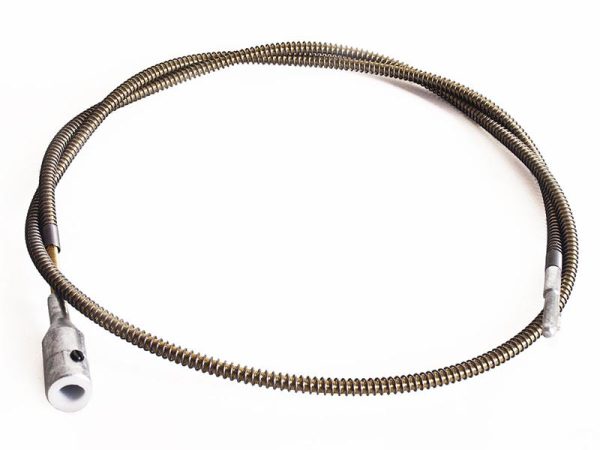

S-93-NC Key Tip Shaft for Most Motors, 39″ Long, Non-Conductive

S-93-NC Key Tip Shaft for Most Motors, 39″ Long, Non-Conductive

SKU: S-93-NC.

$17.68

Optional 39″ long, Non-Conductive key tip inner shaft for replacement on Series SR, Series TX, Series LX, and Powergraver motors.

This optional 39″ inner shaft is non-conductive and different from our standard shaft that comes on most motors. It was developed by our engineers for equine dentists and other users with similar applications. The S-93-NC has a plastic motor connector in place of our standard metal components. This shaft can be used to replace broken or worn shafts on these motors:

M.SR, M.SRM, M.SRB

M.TX, M.TXM, M.TXB

M.LX, M.LXM M.LXB

M.PGX

Use with outer sheath S-77 sold separately.

Replacement shafts require a VERY light coating of Foredom grease before use. Be sure to unplug your motor before doing any maintenance and never operate your Foredom without the outer sheath attached.

IMPORTANT NOTE:

S-93-NC Shaft MUST ship via UPS in larger carton to avoid damage (bending) that could occur if shipped in smaller, USPS carton.


Can also be used to replace broken or worn shafts on these older, discontinued motors:

M.SR, M.SRM, M.SRB-1/8HP models sold prior to Nov. 2005

M.L, M.LM, M.LB

M.PG

M.S, M.SM, M.SB
M.CC, M.MM, M.DD
M.R, M.RB

M.K


View Video Material Before Installing this Product:



Watch Videos on Lubricating and Replacing Shafting:

Weight 1.6 lbs
Dimensions 12 × 12 × 2 in
