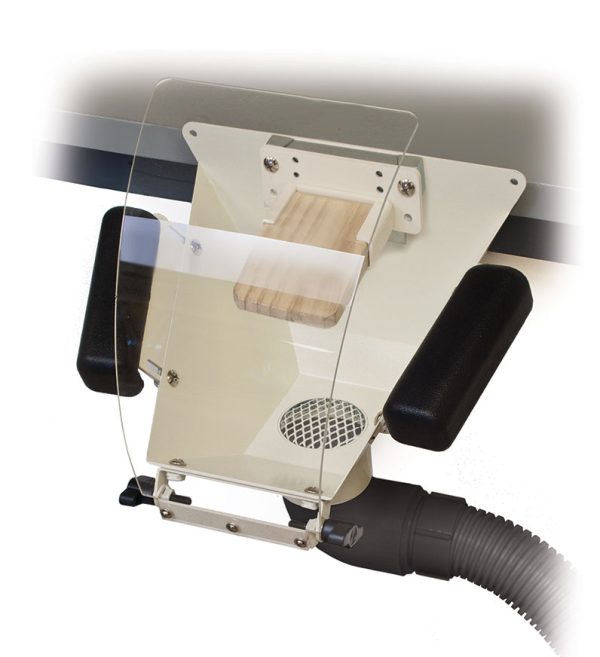

Fishmouth with Bench Pin Assembly

Foredom’s new Fishmouth with bench pin, curved acrylic shield, and adjustable arm rests is the perfect addition to any bench for dust control and debris removal. It mounts to benches with a GRS style mounting bracket. (Foredom’s MA604 mounting bracket is included in case you do not already have a GRS bracket) The exhaust port accommodates a 2-1/4 hose and comes with an elbow to position your dust collector hose in any direction. The curved acrylic shield gives a clear view of your work and also helps to keep stray dust from flying at you. The inside of the Fishmouth has a mounting bracket for the supplied Wooden Bench Pin Assembly.

Specifications:

Fishmouth:

Width: 9-1/2 at back, 6 at front

Depth: 8-3/4 front to back

Height: 9 from bottom of metal exhaust port to back

Curved Shield:

Width: 8 at top, 5 at bottom

Height: 10-1/2

Fishmouth with Bench Pin Assembly:

Weight: 6.4 lb

Ship Weight: 8 lb

Ship Dimensions: 13.75 long, x 13.25 deep x 8.5 high

Fishmouth Parts List
