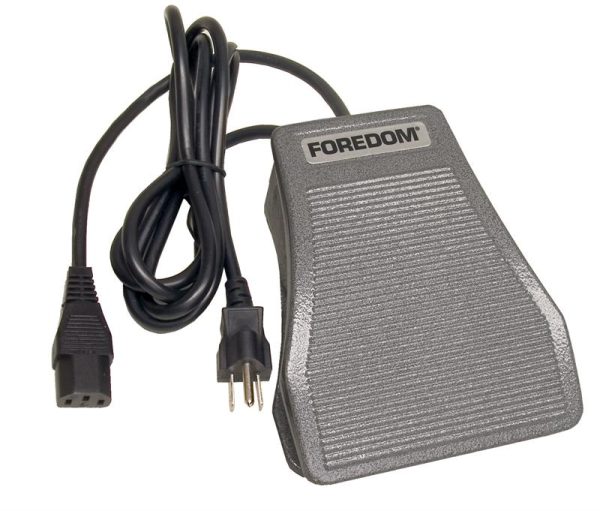

C.SXR-2 Foot Control, 230 Volt – International

230V variable speed foot control in metal housing for Series LX and LXH motors. See Product Options for plug options.


SKU C.SXR-2 - C.SXR-21 - C.SXR-22 - C.SXR-26 Category



Use Product Options Menu to Select Power Cord Plug Option: -2 for US Plug (C.SXR-2), -21 for UK Plug (C.SXR-21), -22 for Continental European (C.SXR-22) or -26 for Australian Plug (C.SXR-26).

Foot operated variable speed control comes in a heavy, cast iron metal housing and the extra weight provides added stability and control. The ergonomics allow precise and reliable speed control with your foot. C.SXR-2 converts AC current from an electrical outlet to DC current- the type required by 230 Volt M.LX, M.LXB, M.LXH and M.LXBH motors. It also has a special plug that fits the motor’s shielded plug.

For use with 230 Volt M.LX, M.LXB, M.LXH and M.LXBH motors.

(Series TX motors are ONLY available in 115V).

7″ long, 5″ wide, 2-1/2″ high, packaged wt-6 lb/2.7 kg,
3 Amps, 50 Hz


Additional information

Weight 5.05 lbs
Dimensions 11 × 7 × 7 in
SKU - Power Plug

C.SXR-2 – North America, C.SXR-21 – United Kingdom, C.SXR-22 – Continental Europe, C.SXR-26 – Australia
