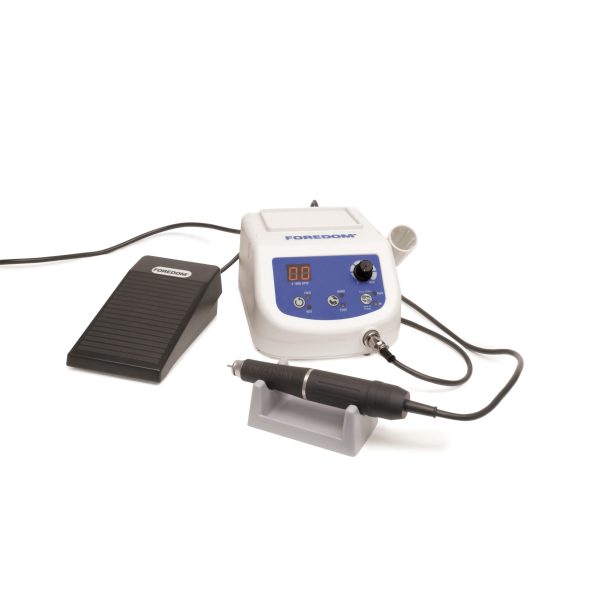

K.1040 High Speed Rotary Brushless Micromotor

K.1040 High Speed Rotary Brushless Micromotor

Slow, Steady and Smooth! High Torque Start.

Brushless motor design – eliminating the need to replace carbon brushes

Two speed settings:
Setting  1 – Full speed range up to 50,000 RPM.
Setting 2 – 500 RPM – 5,000 RPM.

• Maximum Torque – (11.3 oz-in / 8 N-Cm) or 160 Watts Output Power
• Sealed housing eliminates dust, noise, and vibration
• 115 or 230 Volt
• Two Year Warranty
• UKCA and CE marked, double insulated

Specs: 8.6 lbs. kit shipping weight, shipping dimensions: 12˝ x 10-1/4˝ x 5-1/4˝

Handpiece/Motor

• Ergonomic, comfortable grip
• Brushless with long-lasting ball bearings
• Easy bur changes – twist to release or lock bur
• Designed for simple collet changes to use 3/32˝ (2.35mm) or 1/8˝ shank burs

Specs: 6-1/2˝ long, 1-1/8˝ diameter at thickest end, 1/2˝ diameter at nosecone, 5´ long handpiece cord, weighs 8.9 oz.

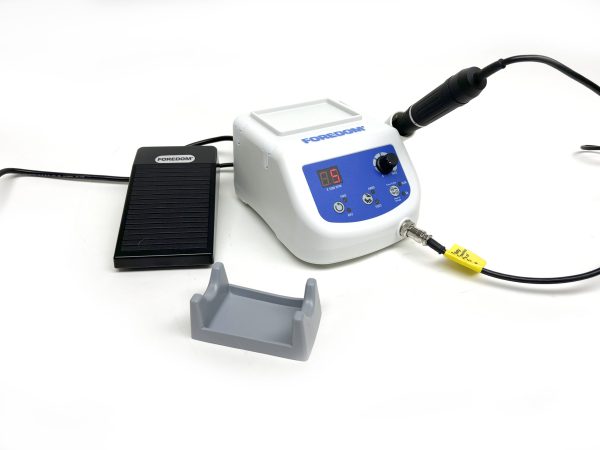

Control Box with Front Panel LED

• Dial speed control sets precise speed and can set a maximum speed for operation with foot control
• LED digital speed display
• Select: Forward or Reverse rotation, Dial or Foot speed control, 115 or 230 Volt
• Built in overload protection
• Convenient handpiece holder with four (4) optional locations on control box
• Tray with lip on top of control box to hold small items
  Specs: 50/60 Hz, 250 Input Watts, 6˝ wide x 8˝ deep x 4-1/4˝ high, 6´ cord, weighs 5.4 lbs.

Variable Speed Foot Control: 3-3/4˝ wide x 6-1/4˝ long x 2-1/2˝ high, weighs 25 oz.

Click here to view manual

Click here to view info sheet.

Click here to view Foredom micromotor comparison chart
