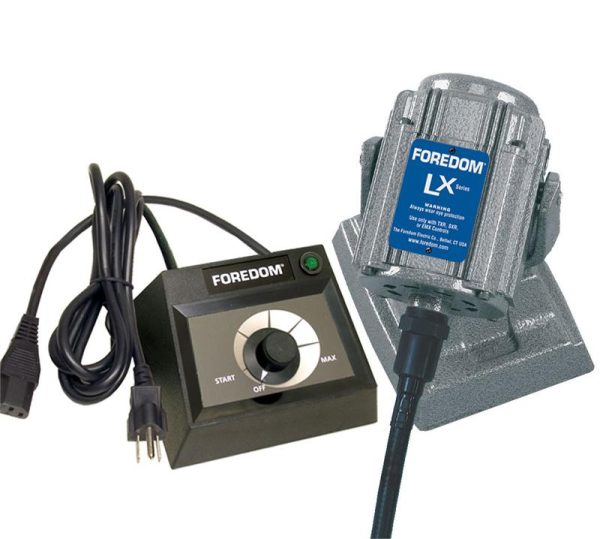

M.LXBH Bench Motor with Heavy Duty Square Drive Shafting choice of Speed Control

Bench motor with heavier square drive shafting and speed control. A square drive handpiece required for operation and available separately.


In stock


Bench style version of Foredom’s High Torque/Low Speed Series LXH motor comes mounted in a cast-iron base for easy placement anywhere on the workbench. It is teamed up with the C.TXR-1 foot operated speed control in plastic housing.

Two Year Limited Warranty on Motor and Control.

These controls have the same housing as other Foredom speed controls but they convert AC current from an electrical outlet to DC current required by Series LX motors. These controls have a different style plug that is made to fit the motor’s shielded-type plug. Damage will result if the motor is connected to any other speed control.


C.TXR-1 Speed Control foot operated variable speed control is made of heavy duty plastic with durable electronics. The ergonomics allow precise and reliable speed control with your foot. For use with 115 Volt M.TX, M.TXB, M.TXH, M.LX, M.LXB, M.LXH and M.LXBH motors. 7″ long, 4-12″ wide, 2-38″ high, ship wt 2 lbs./1 kg.


C.SXR-1 Speed Control has the same durable electronics as the C.TXR-1. The ergonomics allow precise and reliable variable speed control with your foot. The C.SXR-1 has special electronics that converts AC current from an electrical outlet to DC current- the type required by the motor. It also has a special plug that fits the motor’s shielded plug. 6-3/4″ long, 4″ wide, 2-3/8″ high, ship wt-6 lbs./2.7 kg.


C.EMX-1 Speed Control is a variable speed control in a plastic housing that can be positioned anywhere on a work surface. The hand dial is used to adjust and set speed. This manual style control allows you to maintain and return to a desired speed, time and again by marking the setting on the dial. The C.EMX-1 also has a replaceable fuse that protects the electronics during power surges and work overloads. 5″ long, 5-34″ wide, 2-58″ high, ship wt 2 lbs./1 kg.

Square drive Series LXBH flex shafts feature a 63″ long, heavier square drive shaft and protective sheath in place of the standard key-tip shaft and sheath. Square drive shafting ONLY works with Foredom’s 4 square drive handpieces- the H.25H, H.30H, H.44HT and new H.28H.


Additional information

Weight 14.5 lbs
Dimensions 17.5 × 7.25 × 10 in
Speed Control Option

EMX – Dial Control, SXR – Metal Foot Control, TXR – Foot Control
